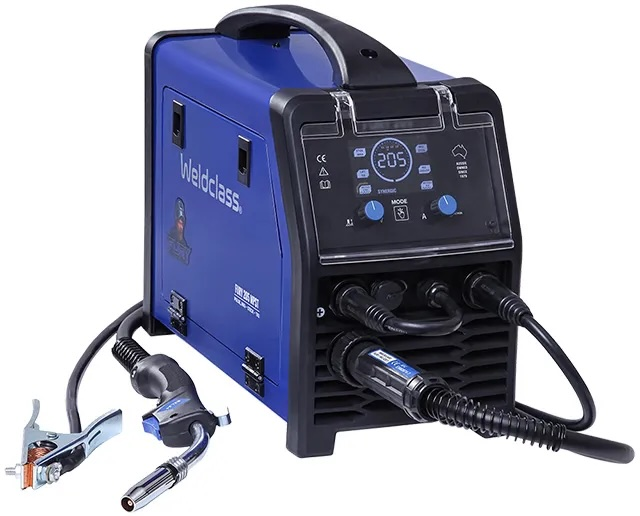

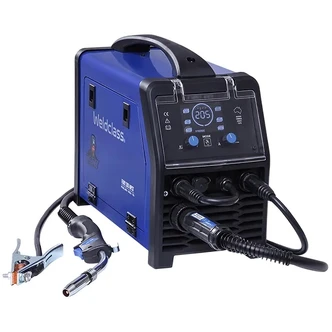

Weldclass FURY 205 MPST Pulse (230V 10A) Value Kit - MIG / Stick / TIG
($949.00 Incl GST)
In StockTake full control of your jobs and weld like a pro with this easy-to-use pulse machine! The FURY 205 MPST packs serious Pulse performance from standard 10A power supply. Designed for greater output and capability, it features Pulse MIG, Pulse STICK and Pulse Lift DC-TIG for superior arc control, reduced spatter and outstanding weld appearance.
With a powerful 205A max output, it welds from approx. 0.8mm to 12mm, making it ideal for those heavier workshop and site applications.
Pulse MIG delivers a smooth, low-heat arc — excellent for Aluminium, Stainless and Mild Steel — and it’s Spool Gun ready for enhanced Aluminium performance.
Pulse STICK improves positional welding control and gap-bridging ability. Adjustable Pulse Lift-TIG (torch optional) provides refined heat control for high-quality welds on steel and stainless.
Simple to use, intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual. Geared 2-roll wire drive system ensures strong, consistent wire feed performance.
Supplied as a comprehensive Value Kit, including bonus Promax 130 welding helmet, gloves, MIG pliers and cooler bag.
Maximum Pulse capability. 10A convenience. Awesome value!
PROCESSES:
- MIG: Single-Pulse and Non-pulse
- Gasless MIG
- MIG Spool Gun
- Stick / MMA: Pulse and Non-pulse
- TIG (DC lift-arc for steel/stainless): Pulse and Non-pulse
AT A GLANCE:
- 205A @ 9% max output
- MIG weld up to 12mm mild steel, Stick weld up to 12mm
- Fitted with 230V 10A plug
- Takes 1kg and 5kg spools
- Supplied as a Value Kit with bonus helmet, gloves, pliers, cooler bag
- Pulse mode in all functions (MIG, Stick, TIG)
- Simple and very user-friendly controls
TECHNICAL SPECIFICATIONS:
- Output Amperage: 30 – 205A
- Power Supply: Single phase 230V-240V, 3 pin
- Wall Socket & Plug: 10A Domestic Power
- Generator Size: Minimum 8kVA, recommended 10+kVA for maximum output (See here see here for more info on generator use)
- Output Terminals: Large 35-50 Dinse Style
- MIG Duty Cycle: 205A @ 9% | 79A @ 60% | 62A @ 100%
- MMA Duty Cycle: 170A @ 10% | 69A @ 60% | 54A @ 100%
- TIG Duty Cycle: 170A @ 13% | 79A @ 60% | 61A @ 100%
- Wire Spool Sizes: D100mm / 1kg and D200mm / 5kg
- Wire Drive System: 2 Roll, Geared-Drive Top & Bottom (well suited for feeding aluminium wires)
- MIG Feed Roll Size: O.D. 30mm x I.D. 22mm x Width 10mm
- MIG Gun Type: BZL 24 x 3m
- Dimensions of machine only including handle: L465 x W225 x H365mm
- Weight of machine only: 10.7kg
- IP Rating: IP21S
- Manufactured to AS 60974.1 standard

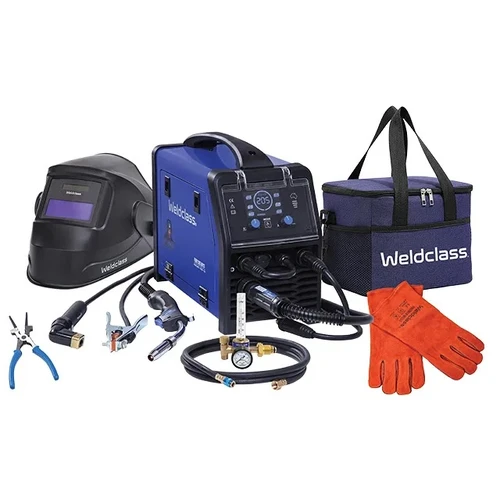

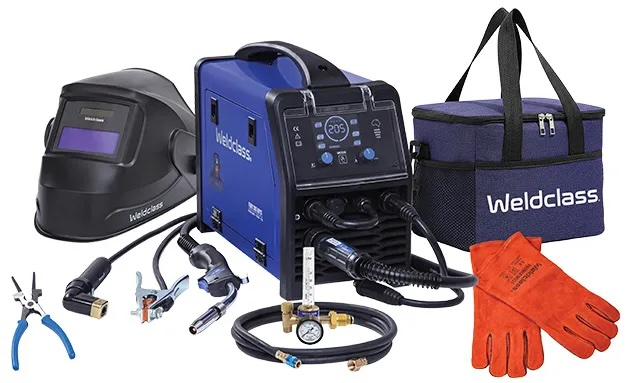

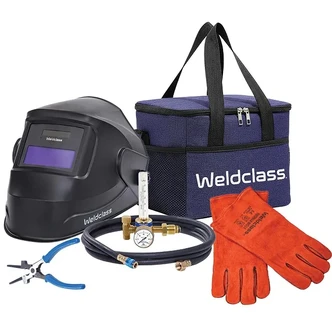

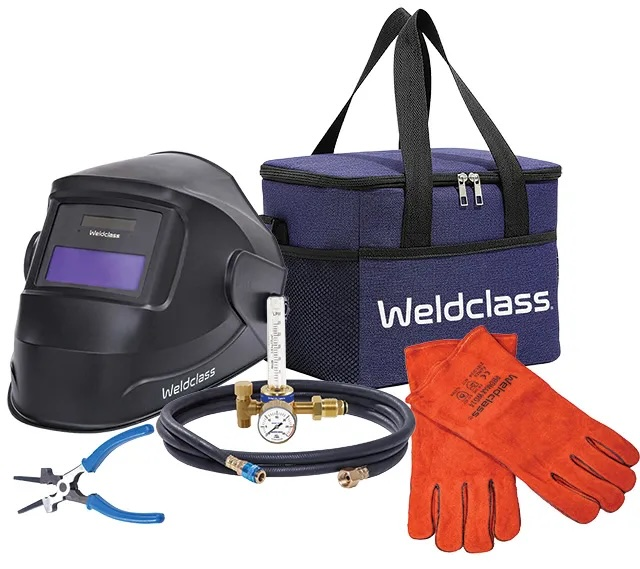

INCLUDES:
- FURY 205 MPST Machine
- PROMAX 130 Auto Darkening Helmet
- MIG Gun BZL24 x 3m
- Earth / Work return Lead & Clamp 3m
- Stick Welding Lead with Twist-Lock holder 3m
- Gas regulator and 2.5m Hose with quick-connect fitting to machine
- Wire Feed Rollers: Solid/Steel 0.8/0.9mm, Flux-Cored 0.8/0.9mm, Aluminium 0.9/1.0mm
- Welding Gloves
- MIG Pliers
- Cooler Bag - For Hot Days and Cold Drinks
| SKU | WFY205MK1 |
| Barcode # | 9341562067584 |
