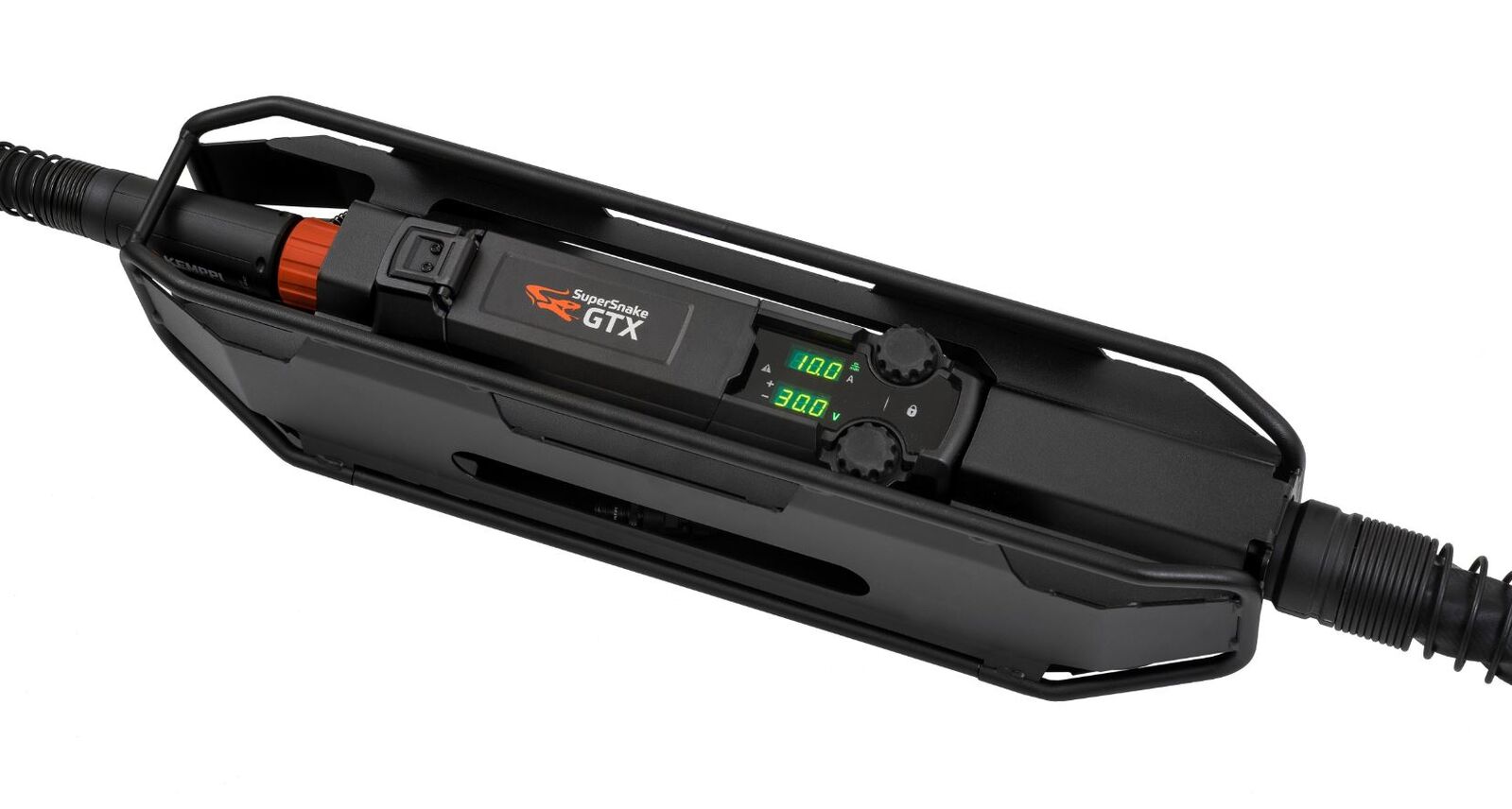

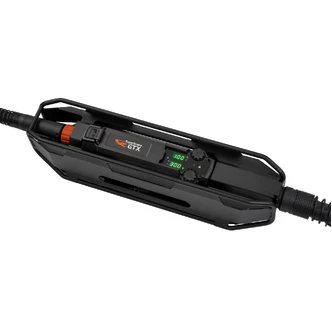

Kemppi SuperSnake GTX GAS 20m package, 50mm2
Includes:
• SuperSnake GTX motor drive unit and frame
• SuperSnake GTXG 20m cable, 50mm2 (Std liner FE 1.0-1.6mm)
Take quality welding to locations other brands just can´t reach, improving both productivity and personnel safety.
SuperSnake is the ultimate synchronized sub-feeding system for those hard-to-reach welding sites, providing an attractive alternative to the motorized push-pull welding guns with limited reach, or heavy wire feeders with extended cable sets.
SuperSnake serves both gas and water-cooled applications, supported by standard Euro-connected welding guns and synchronizing with Kemppi's industrial MIG/MAG welders.
SuperSnake GTX is the latest distance wire feeding champion, serving the excellent X5 FastMig and Master M family. SuperSnake GTX models feature 10/15/20/25-meter cable package options including a metal protection frame, digital metering, safety isolation switch, wire inch and a gas test buttons as standard.
SuperSnake GTX
Extending the reach of standard Euro-connected MIG welding guns, the SuperSnake GTX guarantees reliable wire feeding up to 30 meters from the primary wire feeding unit.
Lift it, drag it, pull it! It is a perfect choice for challenging heavy and medium-heavy metal fabrication and installation work.
DISCOVER THE UNIQUE FEATURES AND FUNCTIONS OF SUPERSNAKE GTX
Easy local control
SuperSnake GTX user interface places parameter adjustment at the welder’s fingertips, including manual wire feed speed and voltage control, or automatic power regulation and fine-tuning.
Powerful and durable wire feed mechanism
Compact, quick release twin drive wire feed mechanism. Automatic wire loading ensures trouble-free filler wire loading up to 30 meters from the primary wire drive system.

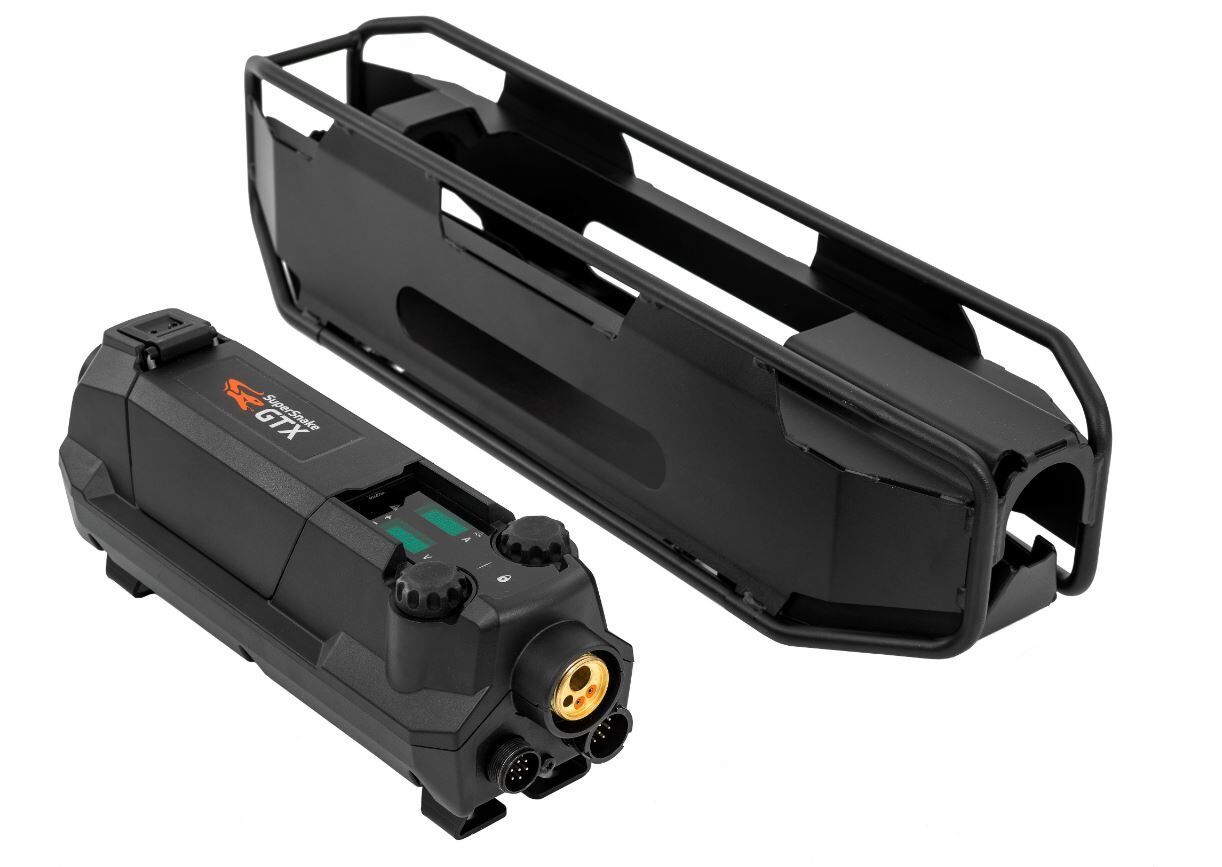

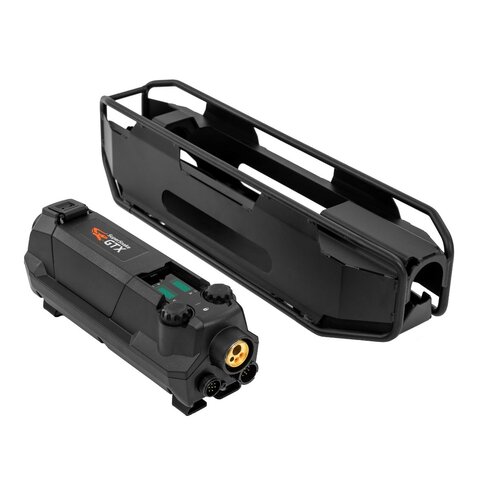

Strong and compact metal protection cage
The metal protection cage increases robustness, and neatly combines, secures, and supports the cables package, its connectors, and hoses. Easily opened for fast cable package management, the protection cage can also be used for suspending and hanging SuperSnake GTX above the work area. Included in the sales package or sold separately.
Added safety value
Safety lock ON/OFF switch prevents welding with the primary welding system powered on. An valuable safety feature during rest breaks or moving welding locations.
• Connects with Euro-connected welding guns
• Compatible with all X5 FastMig wire feed units featuring sub feeder synchronization
• 10-,15-, 20- and 25-meter water and gas-cooled models
• Suitable for 1.0mm to 1.6mm Fe/Ss/Al/FC/MC filler wires
• Easy parameter adjustment close at hand
• Clear meter display in all light conditions
• Safe lock switch prevents accidental activation
• LED cabinet lighting makes wire change and maintenance easy
SKU | P402GTX |
