Quality Unimig Razor 320 AC/DC TIG Welder
($4,071.61 Incl GST)
In StockThe RAZOR™ 320 AC/DC gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This Three-Phase machine features Square, Trapezoidal and Sine AC output waveforms, as well as MIX ARC AC/DC functions.
The RAZOR™ 320 AC/DC is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminium, stainless steel fabrication, marine and industrial engineering welding situations.

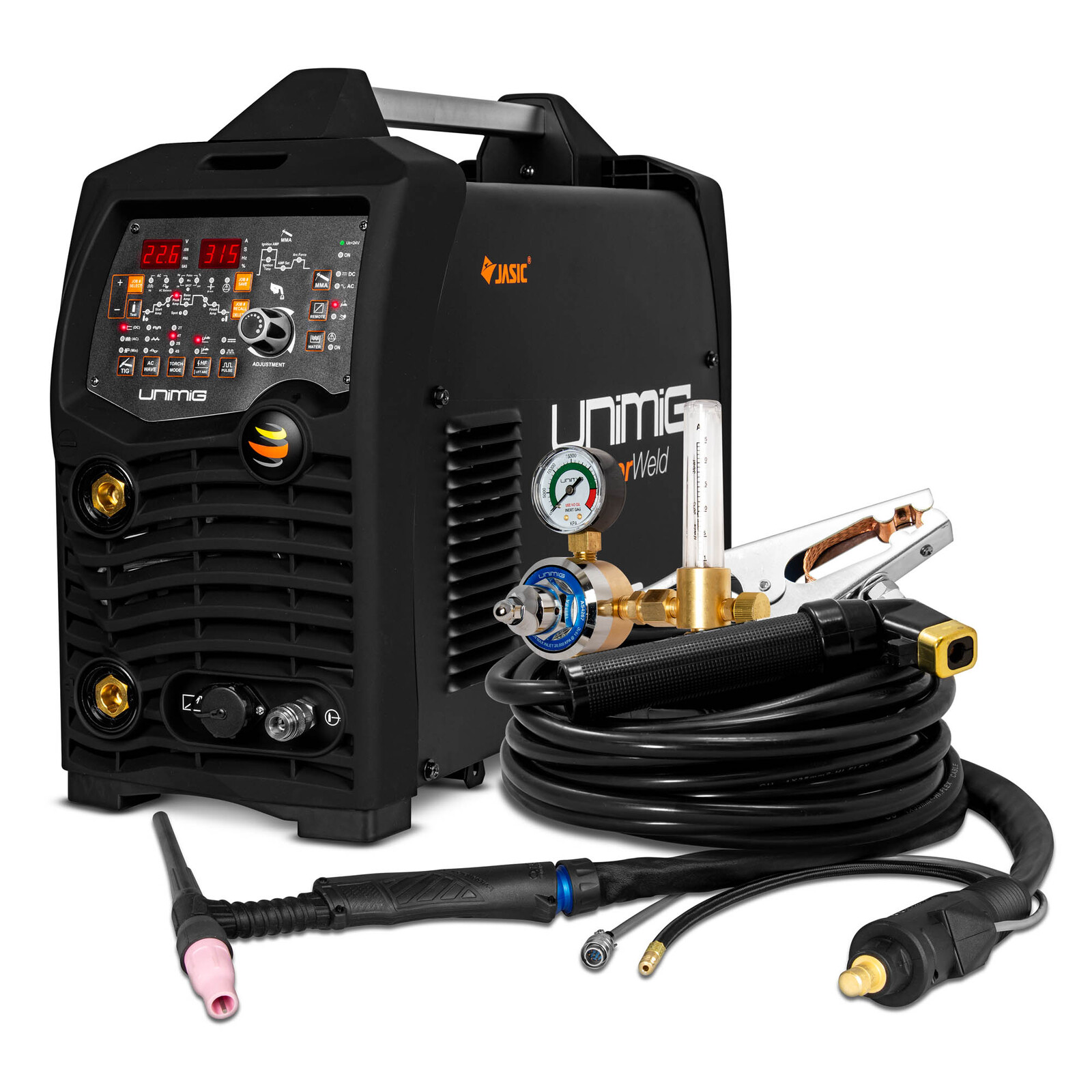

The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZOR™ 320 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control and Water Cooler can also be plugged into the machine for even more versatility and power.
Key Features:
• Three-Phase (415V Power)
• AC TIG Waveforms
• MIX ARC AC/DC
• Water Cooled Available
AC TIG WELDING
Featuring multiple AC output waveforms of Square, Trapezoidal, and Sine, combined with AC Balance and AC Frequency control you have the ultimate tool in AC TIG Welding mode to suit all your AC TIG welding requirements.
DC TIG WELDING
Latest 43KHz inverter frequency technology provides the ultimate in smooth and stable arc condition for DC TIG welding mode, coupled with the Digital Weld Sequence Program provides complete and professional DC TIG Welding function.
MIX ARC AC/DC TIG WELDING
This function of MIX AC/DC makes it possible to modulate the welding current, alternating a period of TIG AC with a period of TIG DC-. This means that the efficiency of AC TIG welding can be combined with the high penetration of DC TIG welding, obtaining higher welding speeds and establishing the weld puddle quicker on cold work-pieces. The operator adjustable parameter is the percentage of AC waveform compared to DC- waveform over the entire period, which can be varied from 5~95%.
STICK WELDING
Full attention is given to MMA welding providing both DC and AC output modes. Ignition AMP and Ignition Time provide for an operator-controlled Hot Start of the weld by applying extra current to the set weld current over a preset time. Arc force allows adjustment of the arc transfer from a digging action through to a softer layering effect. The complete and professional MMA function allows you to set the ideal arc condition no matter what the electrode and welding situation.
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
415V Three Phase
SUPPLY PLUG
No plug supplied (20 AMP Recommended)
RATED INPUT POWER (kVA)
9.0
Ieff (A)
10.0
RATED OUTPUT
5-315A
NO LOAD VOLTAGE (V)
9-73
PROTECTION CLASS
IP21S
INSULATION CLASS
F
POWER FACTOR
0.7
MINIMUM GENERATOR (kVA)
10.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1, AS/NZ60974-10
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
| SKU | KUMJRRW320ACDC |
| Barcode # | 9333521052779 |
