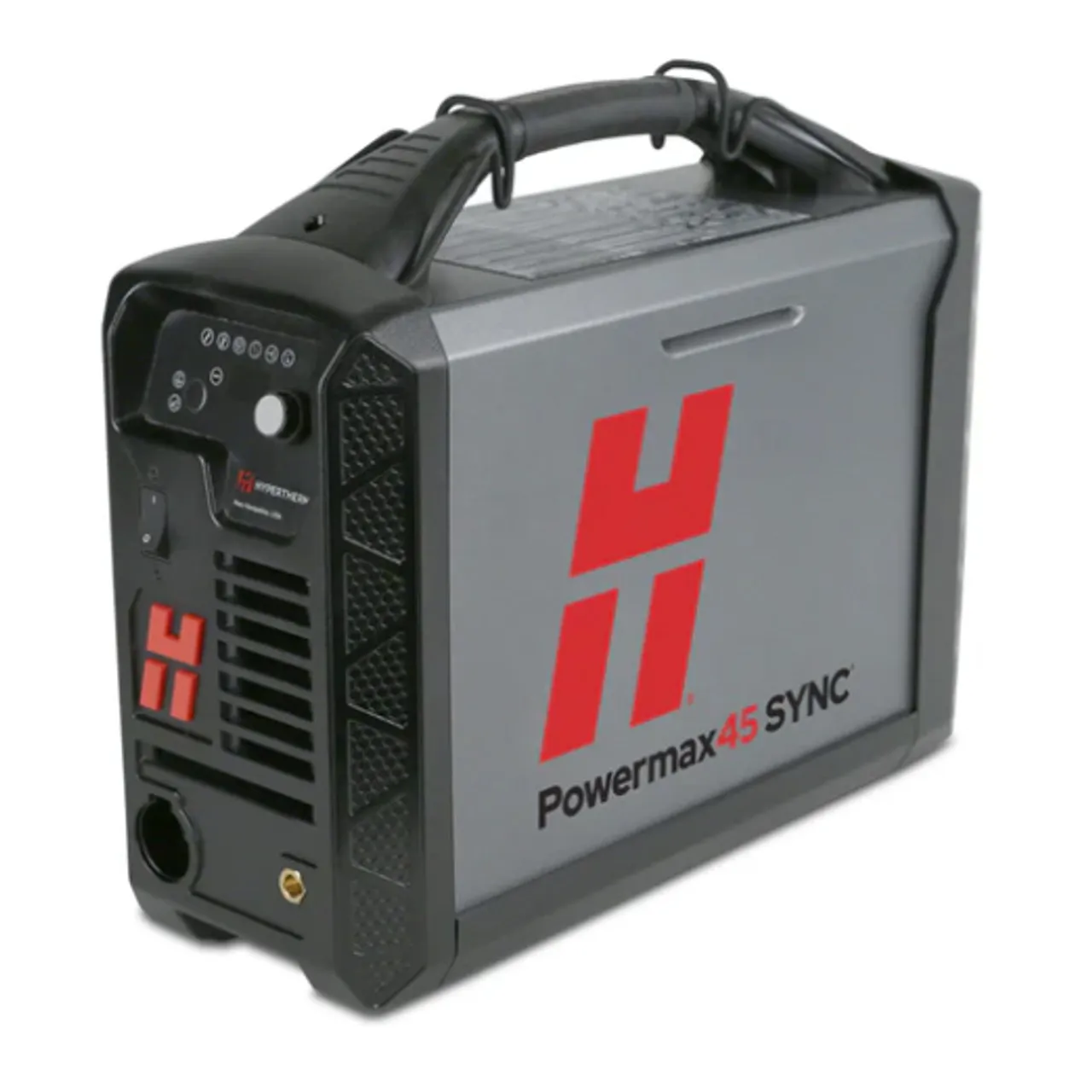

POWERMAX45 SYNC 230V CSA PWR SPLY W/CPC PORT V-DIV BD/SER INT
($4,455.00 Incl GST)
In StockFor metal workers who want the most versatile system available to gouge, cut, and mark, Powermax45 SYNC delivers the best return on investment with a patented single-piece cartridge, up to 5x longer consumable life, and greater cutting power than higher-amperage competitors.
Industry-leading reliability
-SmartSYNC torches are engineered for rugged, industrial environments.
-SpringStart™ technology ensures consistent starting and a more reliable torch.
Industry-leading reliability reduces production downtime.
Easy to use
-Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
-RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
-End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
-Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.
Maximize performance
-Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
-Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
-Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.
Input voltages
CSA
200–240 V, 1-PH, 50/60 Hz
480 V, 3-PH, 50/60 Hz
480 V, 3-PH, 10 A @ 6.9kW
CE
230 V, 1-PH, 50/60 Hz
400 V, 3-PH, 50/60 Hz
Kilowatt output
6.9 kW
Input current
CSA
200-240 V, 1-PH 39/32 A @ 6.5 kW
CE
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A
Output current
9–45 A
Rated output voltage
155 VDC
Duty cycle @ 104° F
CSA
50% @ 45 A, 200–240 V, 1-PH
60% @ 41 A, 200–240 V, 1-PH
100% @ 32 A, 200–240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH
CE
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)
CSA
275 VDC 200-240 V
275 VDC 480 V
CE
265 VDC 400 V
Dimensions with handles
442 mm D; 173 mm W; 357 mm H (17.4″ D; 6.8″ W; 14.1″ H)
Weight w/6.1 m (20′) torch
CSA
14 kg (31 lbs.)
CE
15 kg (33 lbs.)
Gas supply
Cutting: air (clean, dry, and oil-free), nitrogen, F5
Gouging: air (clean, dry, and oil-free), nitrogen, F5
Marking: air (clean, dry, and oil-free)
Recommended gas inlet flow rate/pressure
188 I/min @ 5.9 bar (400 scfh @ 85 psi)
Input power cable length
3 m (10′)
Power supply type
Inverter – IGBT
Engine drive requirement
12.5 kVA (10 kW) for full 45 A output
Electrical efficiency
90%
Certifications
CSA - certified for use in the Americas and Asia, except China
CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia,
Ukraine, and other countries where accepted.
Also RCM, Ukraine, and Serbian. UKCA – Great Britain
Warranty
Power supplies have a 3-year warranty and torches a 1-year warranty
| SKU | 88572 |
| Barcode # | 662310523992 |
