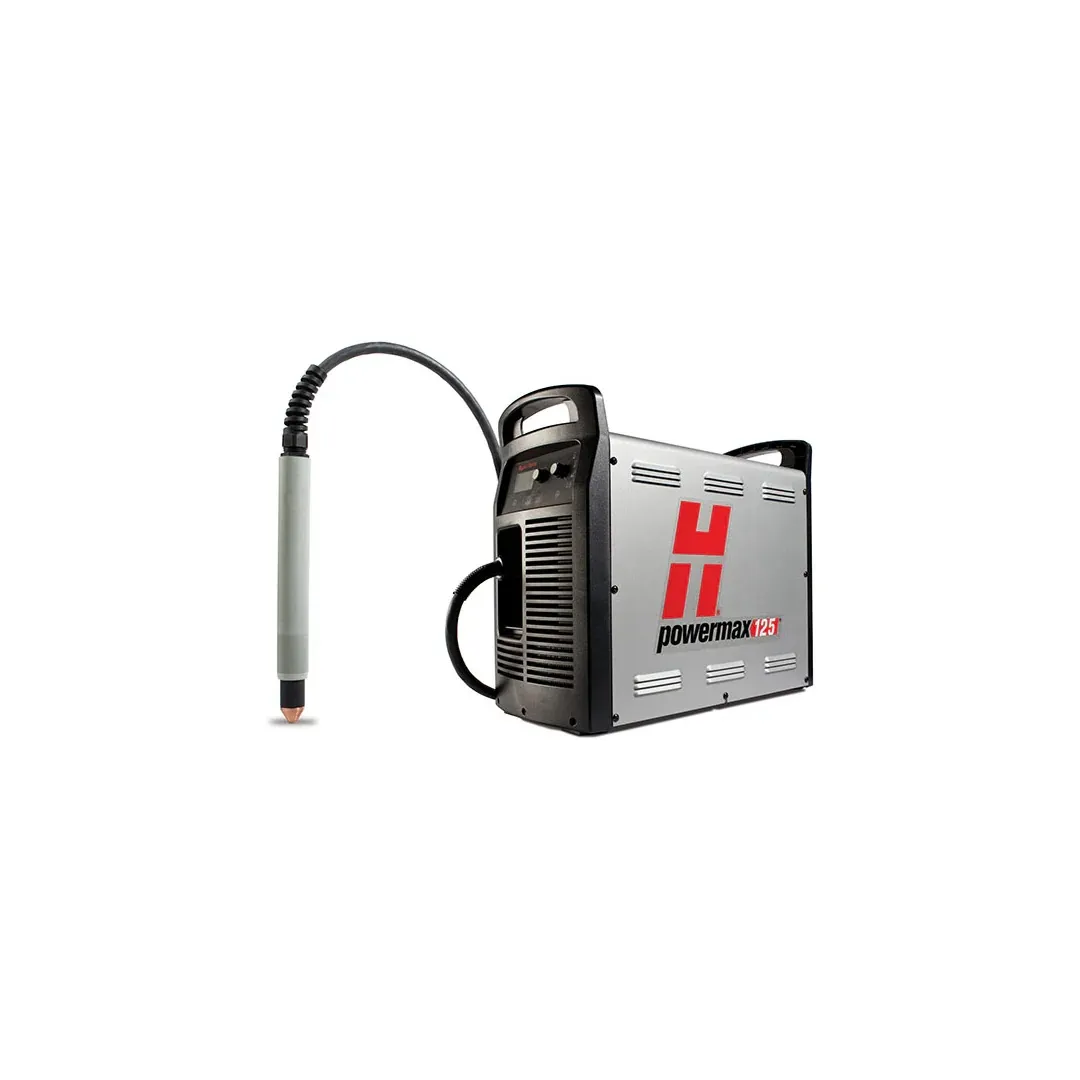

Powermax125 system, 480V 3-PH, CSA, plus CPC & Serial ports, 180° machine torch w/consumables, 15.2m (50') lead
($18,700.00 Incl GST)
In StockDelivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1″) mechanized pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Eleven Duramax® Hyamp™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.
Maximum productivity
-Finish jobs faster with cut speeds five times greater than oxyfuel on 12 mm (1/2”) mild steel
-Superior cut and gouge quality let you spend less time on grinding and edge preparation
100% duty cycle maximizes your cutting time
-Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system
Easy-to-use for cutting and gouging
-No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set
-SpringStart™ technology ensures consistent starting and a more reliable torch
-Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting
Lower operating costs
-Consumable life up to four times longer than other systems in this amperage range
-Electrode end-of-life detection protects the torch and workpiece from damage by automatically -stopping power when the electrode is overused
Built to handle tough jobs
-Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
-Duramax Hyamp torches are designed for high-impact and heat resistance
Input voltages
CSA 480/600 V, 3-PH, 50/60 Hz
CE 400 V, 3-PH, 50/60 Hz
CCC 380 V, 3-PH, 50/60 Hz
Input current @ 21.9 kW
300/400/480/600 V, 38/36/31/24 A
Output current
30–125 A
Rated output voltage
175 VDC
Duty cycle @ 40° C (104° F)
100% @ 125 A
Open circuit voltage (OCV)
400/600 CSA: 320 VDC
380 V CCC: 290 VDC
400 V CE: 305 VDC
Dimensions with handles
592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
Weight with 7.6 m (25′) torch
480 V, 47,9 kg (105.7 lbs.)
600 V, 47,5 kg (104.7 lbs.)
380 V, 45,2 kg (99.6 lbs.)
400 V, 48,9 kg (107.8 lbs.)
Gas supply
Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate/pressure
Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)
Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)
Input power cable length
3 m (10′)*
Power supply type
Inverter – IGBT
Engine drive requirement
40 kW for full 125 A output
Certifications
CSA-certified for use in the Americas and Asia, except China.
CE, C-Tick, CU/GOST, Ukr, and Serbian – for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.
Warranty
Power supplies have a 3-year warranty and torches a 1-year warranty.
*No power cord on some CCC models.
| SKU | 59543 |
| Barcode # | 662310342982 |
Others Also Bought

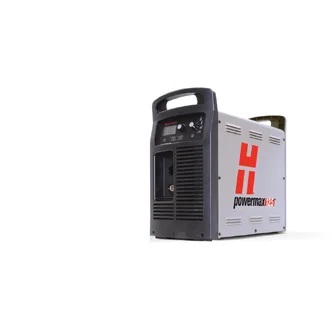

Powermax125 power supply, 600V 3-PH, CSA, plus CPC & serial ports
