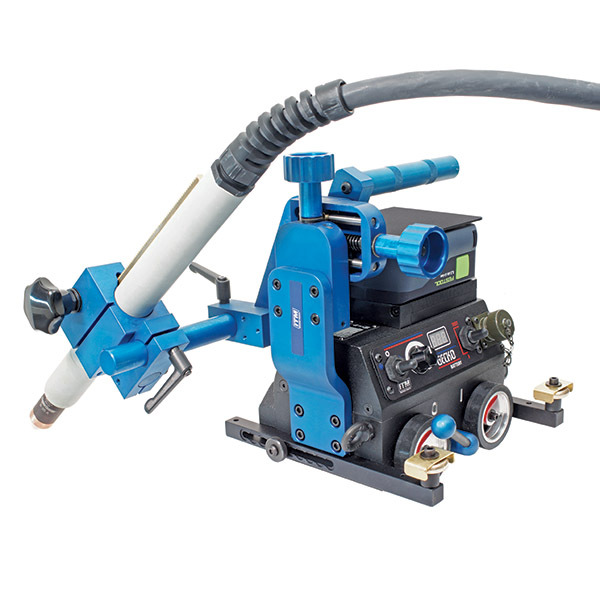

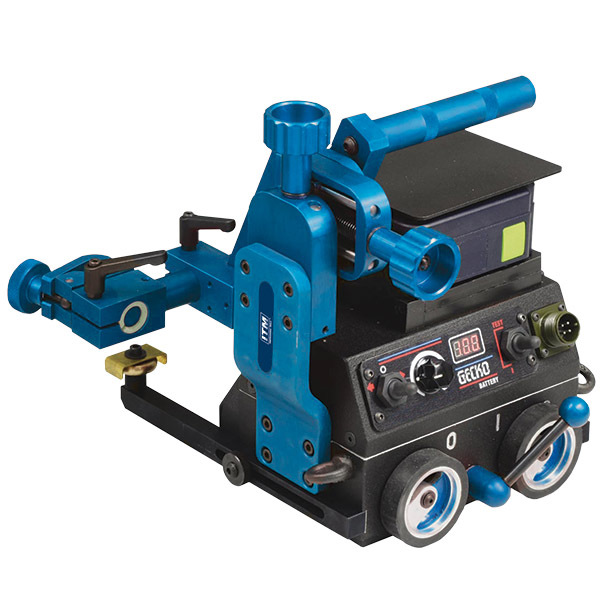

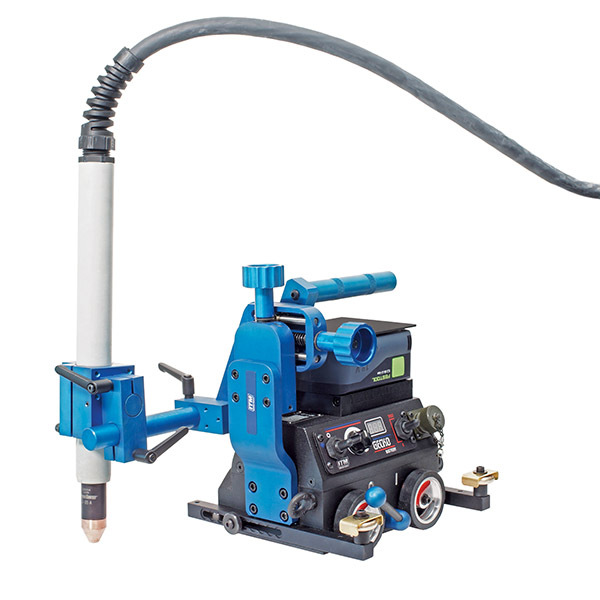

ITM "GECKO" 18V CORDLESS WELDING CARRIAGE, INC 5.2ah BATTERY, HORIZONTAL 0-110CM/MIN
($6,462.50 Incl GST)
In StockFEATURES
- The Gecko is a heavy duty European made portable fillet welding carriage designed to produce consistent high quality welds. It features a 4-wheel drive system with magnetic traction and a control loop feedback mechanism which provides speed stabilisation in all welding positions. Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus substantially reducing costly over welding and decreasing filler metal usage.
- Compact & lightweight design with durable aluminum housing
Permanent magnet clamping system with on/off lever ensures positive magnetic traction - Maintenance free 4-wheel drive with worm gear reduction
- Quick clamping torch holder mechanism for different types of MIG/MAG torches with diameters of 16-22mm (5/8"-7/8")
- Precise torch adjustment with screw drive cross slide
- Multifunctional LED display - presetting of travel speed, metric & imperial units, error codes information
- Closed loop speed control system stabilises travel speed to reduce weld defects and costly rework
- Consistent heat input reduces distortion
- Automatic ARC ON/OFF system initiates welding with travel, simultaneously
- Self-guiding roller arms eliminate the need for track
Improves working environment - removes operator from heat and fumes
BATTERY POWERED MODEL FEATURES:
- Supplied with 18V DC 5.2 Ah battery providing 6 hours average operation time (Charger sold separately WAP-G3510)
- Gecko Battery can also be connected to 240V AC mains by means of power supply (Sold separately WAP-G3520)
PACKAGE INCLUDES
- Welding carriage & battery
- Power lead
- Arc ignition cable
- Torch holder
- 4mm Allen key
- Operator’s manual
SPECIFICATIONS
- Power supply: 115-230VAC / 50-60Hz
- Welding positions: Vertical / Horizontal
- Chassis to material clearance: 4mm
- Travel mechanism: Friction Drive With Worm Gear Reduction, 4 Wheel Drive, Heat Resistant Silicone Wheels
- Tracking method: 2-Guide Rollers
- Torch adjustment: Up-Down 35mm, Left-Right 35mm
- Gear roller adjustment: 100mm
- Horizontal speed: 0-1100mm/min
- Vertical speed: 0-1000mm/min
- Dimensions: 240mm (L) x 258mm (W) x 253mm (H)
- Weight: 8.6kg
SKU | WA-GECKO-18V |
Barcode # | 9328042020628 |
