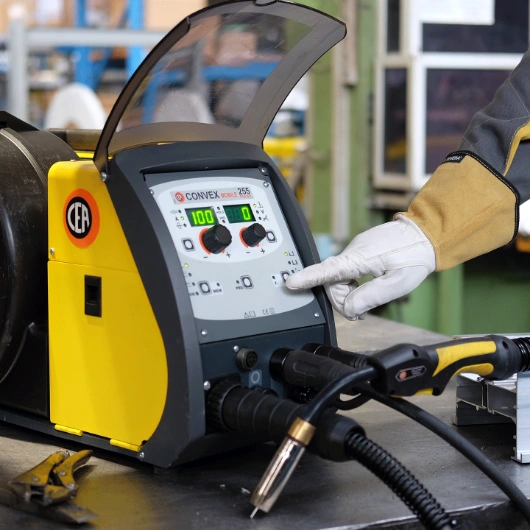

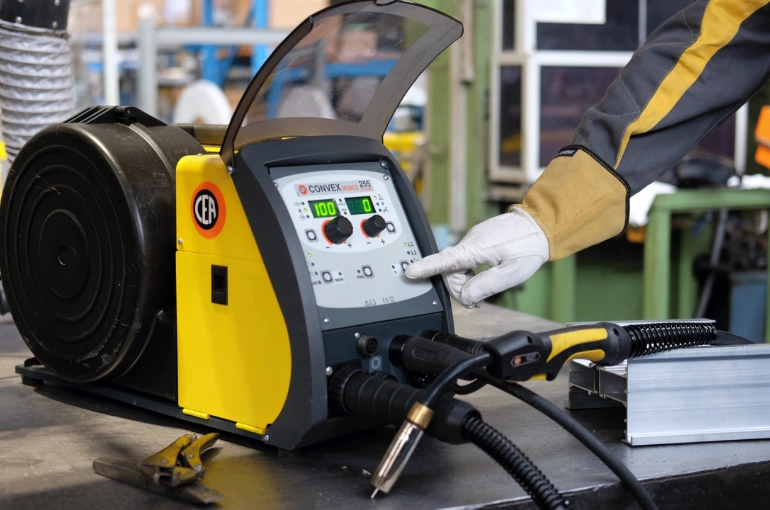

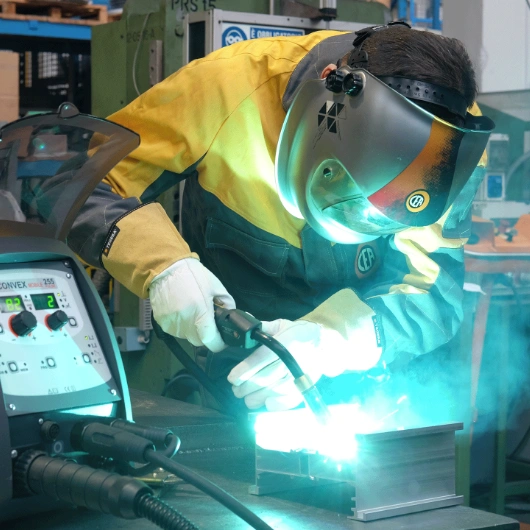

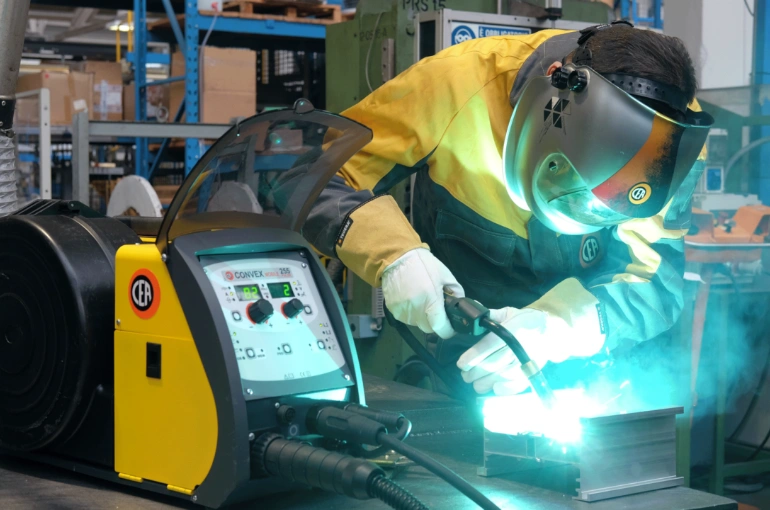

CONVEX MOBILE / CONVEX MOBILE PULSE
SMALL AND POWERFUL

MIG-MAG INVERTER PORTABLE EQUIPMENT

Powerful welding equipment in the size of just one wire feeder unit: this is the main peculiarity of CONVEX MOBILE series, innovative multiprocess synergic power sources for welding in MIG/MAG, MMA and TIG with “Lift” mode.
Versatile, easy-to-carry and user friendly, CONVEX MOBILE equipment are greatly appreciated, also thanks to their high technological conception, anywhere high quality welding is required and are ideal for on-site work, maintenance job, car body repair and light fabrication work.
CONVEX MOBILE

CONVEX MOBILE PULSE
Multi-Process and Synergic Control

CONVEX MOBILE PULSE, because of its additional Pulse and Dual Pulse processes, grants high quality performance on all materials and particularly on stainless steel, zinc coated and aluminium, by greatly minimizing any reworking job caused by spatters.

Single Phase Version with PFC

CONVEX MOBILE 201 and 205 PULSE, with single phase input power, have PFC facility which optimizes the amount of energy consumption by allowing their use, at maximum power, on 16 A fuse mains and with power generator sets without any problems.

Other Characteristics
vision.COLD included in CONVEX MOBILE 205 PULSE – 251 – 255 PULSE
Built-in polarity changeover feature for most common gas and gasless wires
Suitable for Ø 300 mm wire spools
Professional double groove feeding mechanism with 4 rolls of Ø 37 mm.
“Energy saving” function to operate the power source cooling fan only when necessary
Possibility to use Up/Down torches
Trouble shooting auto-diagnosis feature
Initial and final crater control
VRD – Voltage Reduction Device

Technical Features

Vision.Arc
Vision.Pulse
Mig Wire Feeder
Wire Feeder Yard 4

DUAL.PULSE

Dual.PULSE favours a further reduction in the heat transfer to the workpiece by minimizing its deformation and it produces premium quality aesthetic beads similar to TIG finishing. Dual.PULSE is extremely useful when welding aluminium and stainless steel.
Gallery

Datasheet

CONVEX MOBILE / CONVEX MOBILE PULSE: Technical features

TECHNICAL DATA   CONVEX MOBILE 201 / CONVEX MOBILE 205 PULSE CONVEX MOBILE 251 / CONVEX MOBILE 255 PULSE
MIG/MAG TIG MMA MIG/MAG TIG MMA
Single phase input 50/60 Hz V +15%
-15%
230
Three phase input 50/60 Hz V +15%
-15%
400
Input Power @ I2 Max kVA 6 4,6 7,1 10 8,5 11
Delayed Fuse (l eff) A 16 16 16 16 10 16
Power Factor / cos φ   0,95/0,99 0,95/0,99 0,95/0,99 0,74/0,99 0,69/0,99 0,77/0,99
Efficiency Degree   0,84 0,89
Open circuit voltage V 45 45 45 60 60 60
Current range A 10-200 5-200 10-200 10-250 5-250 10-250
Duty cycle at (40°C) A 100% 105 105 105 180 180 180
A 60% 140 140 140 200 200 200
A X% 200(25%) 200(25%) 200(25%) 250(35%) 250(35%) 250(35%)
Wires Ø mm 0,6-1,2 0,6-1,2
Coil Ø mm 300 300
Standards   EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class IP 23S 23S
Dimensions (LxWxH) mm 650 x 300 x 388 650 x 300 x 388
Weight kg 20 21
